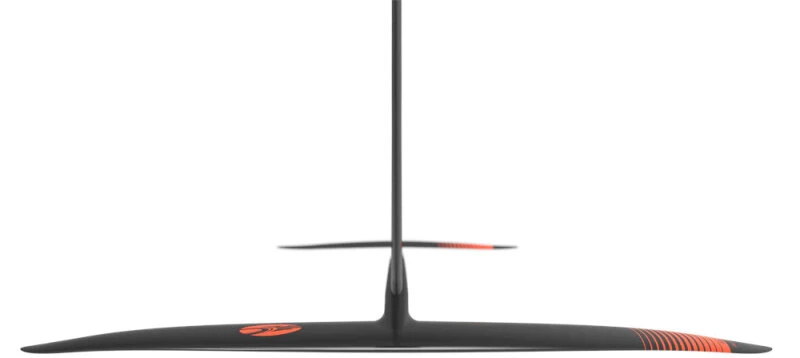

Cabrinha Komplettfoil Fusion H-Series 2022

Cabrinha Foil Fusion H-Series 2022

Efficiency, Versatility. Performance.

The H-SERIES High Aspect foil range is the latest offering from Cabrinha’s state of the art foil design program in collaboration with Keahi De Aboitiz.
The H-series wings represent the pinnacle in hydrodynamic efficiency & performance while seamlessly integrates into the Cab Fusion Foil system.
The high aspect shape allows for effortless pumping, insane glide while retaining an ‚easy-to-steer‘ feeling.
Whether you use them for wing, kite or foil-surfing, rise to the occasion with all of the H-series‘ cutting edge features and be prepared for the endless ride…

Design Profile: Swept outline, Ultra lean efficient profile, moderate anhedral

---

KEY FEATURES:

• Loose and agile feel for superior maneuverability
• Ultra lean profile for wide speed range
• Integrated fuselage with tapered fit
• Incredible torsional stiffness
• Full prepreg carbon construction
• PMI core for superior strength to weight ratio
• Moderate anhedral for a more efficient lift platform

---

---

Team Rider Setup Interview:

For Surfing, my go to for prone surfing is generally H800 for most situations unless it’s smaller slower waves. Once you get a taste of the efficiency of the H series wings, its just hard to ride anything else:
Surf Setup: H800, 80cm Mast, V180 Stabilizer, 346mm Fuselage.

My wing choices are very similar to prone but I’ll generally use the 800 with the h180 tail in most situations as this is our most efficient setup and still surfs great.
Wing Setup: H800, 80cm Mast, H180 Stabilizer, 346mm Fuselage – Keahi

---

Racecar performance

• A fast and high performing wing with an ultra lean profile and high top end speed.

Foil Ergonomics

• The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while still being easy to assemble and disassemble.

Stiff & durable

• Incredible torsional stiffness due to the EPS core & prepress carbon construction. The pre coated Carbon sheets, allow for an extremely accurate level of resin and absorption to provide the highest quality composite construction.

---

---

---

---

Details:

Included Items: Front Wing, Wing Covers

• H650- 650cm², WS 720, AR 7.9, Chord 125mm
• H800- 800cm², WS 900, AR 9.9, Chord 125mm

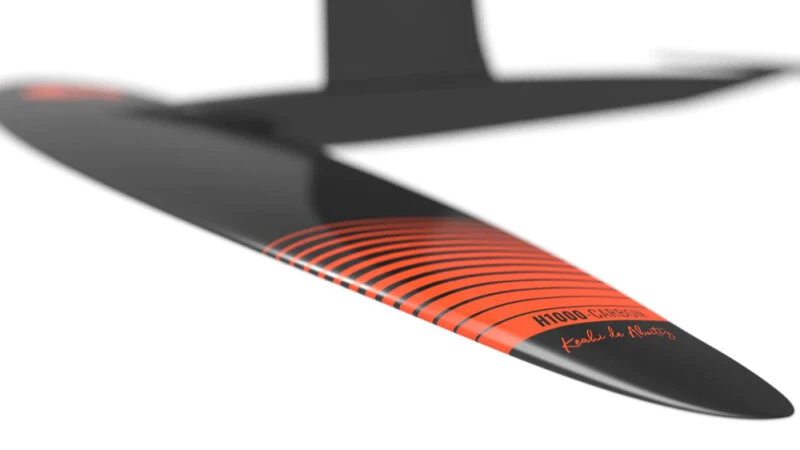

• H1000- 1000cm², WS 900, AR 8.1, Chord 155mm
• H1200- 1200cm², WS 900, AR 6.7, Chord 185mm
