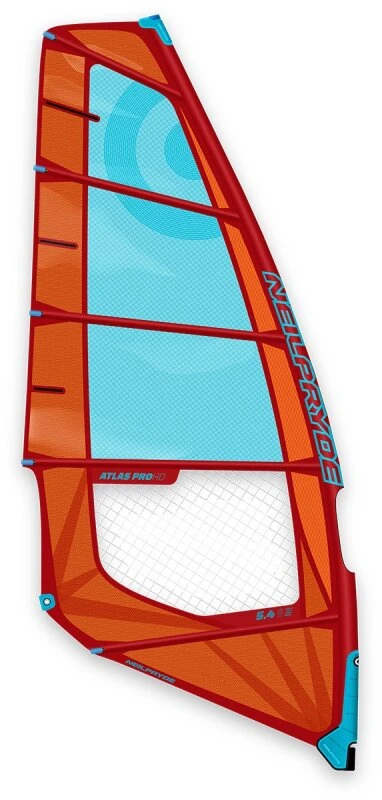

Name: Neil Pryde Atlas Pro HD 2023
SKU: C3VYZ 230211006
Availability: InStock

NP Atlas Pro

Superb early planning combined with controllable power, stability, upwind performance and high wind control make this a favourite sail for onshore conditions and / or heavier sailors.

5 battens for ultimate performance. Atlas will allow you to blast over whitewater and jump higher than ever while still feeling soft enough to perform well on the waves when conditions allow.

Galerie

INNOVATION

Designed and tested at our NeilPryde Maui Design Center by Robert Stroj, then further developed through our team riders‘ feedback from across the world. No stone is left uncovered in our relentless drive to be the best at what we do.

Features:

POWERFUSE 2.0

Powerfuse clew and tack are our „signature“ fully laminated radial overlapping internal panels used in PRO and PRO-HD constructions.

The 2023 version is redesigned to be lighter in weight compared to previous Powerfuse generations.
The unique feature of Powerfuse construction (also shared with Radial HD panels) is how the internal panels are cut and placed in a radial overlapping pattern creating a very strong, multiple layer laminate at high load points (tack and clew) and then gradually reducing the number of overlapping layers to distribute the loads progressively into the main sail body.

LIGHTWEIGHT SCRIM

Centre upper panels use 2mil LIGHTWEIGHT SCRIM laminate to minimize weight while providing outstanding rip-resist- ance due to the high yarn density of this material.

Lightweight 3mil laminate with unidirectional TECHNORA fibres strategically placed in the leech panels to control stretch and stabilize the shape of the sail.

TAFFETA LUFF PANEL

Rip-stop Taffeta X-Ply laminate luff panel combines excellent stitch holding properties with responsive elasticity which makes the sail softer and more forgiving than regular X-Ply but lighter and more responsive compared to Dacron.

Construction Comparison:

Choose which wave sail construction is right for you.

Pro

Laminated Powerfuse tack and clew
Technora panels in leech and head of sail
Lightweight scrim upper panels
Rip stop Taffeta X-Ply laminate luff
Ultra clear window wanel
Our most premium wave sail construction

Pro HD

Laminated Powerfuse Tack and Clew
Lightweight scrim upper panels
Technora panels in leech and head of sail
Rip stop Taffeta X-Ply laminate luff
Ultra-PE X-Ply window panel
Our lightest wave sail construction

Stitched Radial HD Tack and Clew
Ultra-PE upper panels
Ultra-PE in leech and head of sail
Rip stop Taffeta X-Ply laminate luff
Ultra-PE X-Ply window panel
Our most affordable wave sail construction

Sail Features

Drive & Acceleration
Tight leech provides power for early planing and upwind performance.

Wide Wind Range
A large tuning range that allows the rider to trim the sail for all conditions, thanks to the combination of a pronounced luff curve in the boom area and a high outhaul tension that stabilizes the profile.

Stability
Greater luff curve than the Combat and Zone to provide ultimate high wind control.

5 Batten Layout
5 batten layout to provide greater stability and lighter feeling.

SIZE	LUFF	BOOM	BASE	WEIGHT PRO / PRO HD / HD	BATTENS	IDEAL MAST	ALTERNATIVE MAST	TOP FINISHING
4.2	379	155	10	3.1 / 3.0 / 3.2	5	370 RDM		Fixed Head
4.6	396	161	26	3.2 / 3.1 / 9.9	5	370 RDM		Fixed Head
5.0	412	167	12	3.4 / 3.3 / 3.5	5	400 RDM		Fixed Head
5.4	428	172	28	3.5 / 3.4 / 3.6	5	400 RDM		Fixed Head
5.8	444	176	14	3.7 / 3.6 / 3.8	5	430 RDM	430 SDM	Fixed Head
6.2	462	183	32	3.8 / 3.7 / 3.9	5	430 SDM	Fixed Head
6.5	466	186	6	3.9 / 3.8 / 4.0	5	460 RDM	430/460 SDM	Fixed Head
