Starboard Foil Wing And Surf – Wing Set S-Type 2400 2021

Starboard Foil Wing and Surf – Wing Set S-Type 2400 2021

WING SET + MAST SET = COMPLETE FOIL

For surfing waves and carving maneuvers. The S-Types feel solid, stable and secure. They react instantly and precisely to carving pressure. The smaller the size, the faster the speed.

S-Type wing set available sizes: 2400 // 2000 // 1500 // 1200

---

KEY FEATURES:

CHOOSE YOUR MAST SET
Wing Sets need a Mast Set to make a complete foil. Choose between Monolithic Carbon and Aluminium V7:

Monolithic Carbon mast sets are available in: 72cm // 82cm // 92cm // 102cm

Aluminium V7 mast sets are available in: 72cm // 82cm

HOW ARE THE WINGS BUILT?
With a dose of high-precision, high temperature CNC-milled molds, a dash of extremely high pressure and some finishing touches by a robot sander. We build these wings in 100% high-modulus pre-preg carbon fibre using a mix of uni-directional fibres, bi-axial fibres and a proprietary ultra-light core. The wings are unbelievably light, stiff and responsive. A double overlap along the leading edge and trailing edge maximises stiffness and strength.

ARE THEY THE LIGHTEST WINGS IN THE WORLD?
We think so. We don’t have access to all available wings but from what we’ve seen, the wing-building technology that took us three years to perfect puts us in the unique position of having hyper-stiff, bomb-proof wings that are the lightest we’ve ever seen.

QUICK LOCK HD
The front wing slides over the fuselage and locks in place with a quick half-turn of the pressure bolt. The new HD upgrade has an extra hole for a second bolt that gives additional security for heavy duty use.

Will this front wing work with other fuselages?

Quick Lock HD front wings fit both Quick Lock HD fuselages and Quick Lock fuselages. They won’t work with Wind Foil fuselages that use the saddle system.

TAIL WING FITTING SYSTEM
The tail wing sits on a carbon tail piece that has an adjustable rocker saddle. Set the tail wing to your desired angle then slide it on to the fuselage. The tail piece locks in place using our patented Quick Lock system, just like the front wing.

TRIMMING YOUR TAIL WING
More angle gives more lift. Less angle gives more speed. Once you’ve trimmed the tail wing angle to your liking, simply tighten the two bolts. There’s no need to undo these bolts again. The tail wing and tail piece stay together, ready for Quick Lock assembly / disassembly.

TAIL WING / TAIL PIECE DESIGN
The Razr 250’s super-thin profile and gentle C-shape configuration make it our our new go-to wing thanks to its speed, efficiency and maneuverability. Suitable for wing, sup, surf, pump foiling, dock starts or downwind runs. Bascially everything.

The tail wings are made from 28 layers of high-modulus carbon, pressed at high temperatures under tremendous hydraulic pressure for maximum precision, stiffness and performance.

The carbon tail piece is available in sizes 31 or 36, we chose the 36 for the standard wing set since the 36 adds more stability while still offering plenty of maneuverability and reactivity.

---

SUMMARY

The S-Type wing set is for surfing waves and carving maneuvers. The S-Types feel solid, stable and secure. They react instantly and precisely to carving pressure.

Combine the wing set with either a Monolithic Carbon mast set or an Aluminium V7 mast set to make a complete foil.

Available sizes: 2400 / 2000 / 1500 / 1200

What’s in the S-Type Wing Set Box?

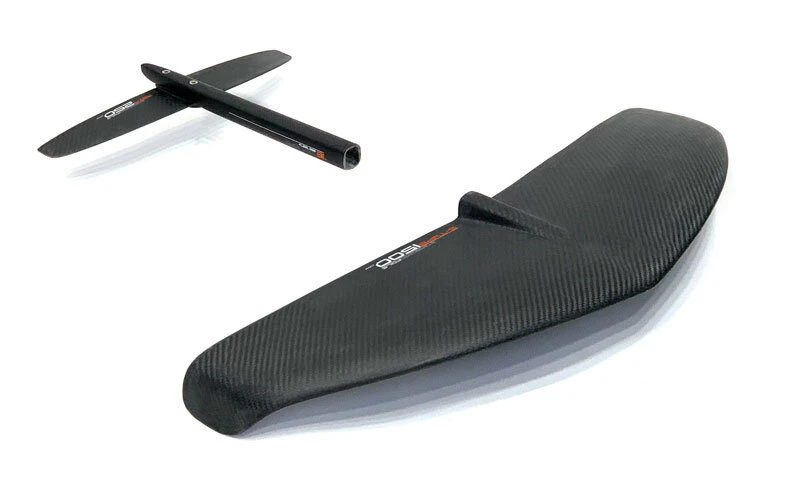

Front Wing: S-Type 2400 / 2000 / 1500 / 1200
Tail Wing: RAZR 250
Tail Piece: Carbon 36
Other Parts: Bolts and Torx Key
Wing Spans: 2400: 100cm / 2000: 88cm / 1500: 77cm / 1200: 68cm

For additional protection, Starboard Foils Wing Covers and the Starboard Foils Team Bags are available to purchase separately.

Recommended Team Bag size:

XL – 82cm x 37cm x 16cm

XXL – 107cm x 37cm x 16cm

Recommended Wing Cover size: TBA

Activity:
Windsurf Foiling: No
Wing Foiling: Yes
Wave Foiling: Yes
Wake Foiling: Yes

---

CUSTOM SHOP

What mast upgrades are available?
Wing sets need to be paired with a mast set to make a complete foil. There are two choices: the Aluminium V7 mast sets offer maximum strength and stiffness and a lower price point. They are available in 72cm and 82cm lengths. The 72cm is a good all-rounder while the 82cm is suitable for those looking for more ride-height. Then there are the ultimate masts, our Monolithic Carbon series. Super light, fast, maneuverable and stiff, these offer the best foiling performance for the most efficient flight. Available in 72cm, 82cm and also 92cm and 102cm for maximum performance wing foiling.

What wing upgrades are available?
Swapping the X-Type front wing for an S-Type or E-Type will get you more lift and more low-speed stability. The S-Type is more stable and maneuverable than the E-Type while the E-Type is more efficient and glides faster than the S-Type.

What tail wing upgrades are available?
The RAZR 250 can be swapped out for a RAZR 220. This smaller tail wing gives you a faster, sharper and more technical ride. It may improve your pumping efficiency, depending on your personal pumping set up and style.

What tail piece upgrades are available?
Swapping the 36 tail piece for the 31 tail piece shortens the total fuselage length. This shorter length will make your foil more maneuverable and react quicker for tighter, faster turns. For some, the shorter fuselage can improve pumping efficiency.

Can I cut down the tail piece to make it shorter?
Yes. Both the 36 and 31 can be cut down to match your personal style. After cutting it short, you just need to drill a new access hole to be able to tighten the Quick-Lock bolt inside.

How does the tail wing trim angle affect foil performance?
In general, setting it in the middle gives the best all-round performance. Most of us tinker around and end up adjusting it back to the default middle setting. If we do add tail wing angle, it’s generally because we need more lift. This could be due to the board being extra long, the wind being extra light or the wave being extra small. If we reduce the tail wing angle, it’s to gain speed and to improve control at higher speeds.
